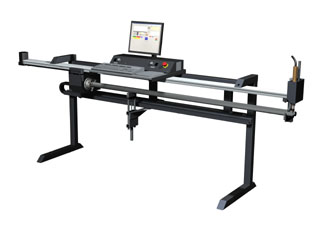

RP-1 Tube Profiler
Bullet   All-ball bearing linear carriage for precision and long life.
Bullet   Rugged 3-jaw chuck
Bullet   Belt drive for high-speed performance and reliability
Bullet   Industry standard G-Code interpretation for versatility
Bullet   Maximum recommended cutting feedrate: 250 inches per minute
Bullet   Maximum rapid position speed 1000 inches per minute
Bullet   Maximum wall thickness for optimum cutting: .38"
Bullet   Tube diameter: .50" to 4.0"
Bullet   Max tube weight: 50 lb
Bullet   Maximum tube length: inquire
Bullet   Positioning repeatability of carriage: .004"

Inquire Here for More Info
